2627355-000-440

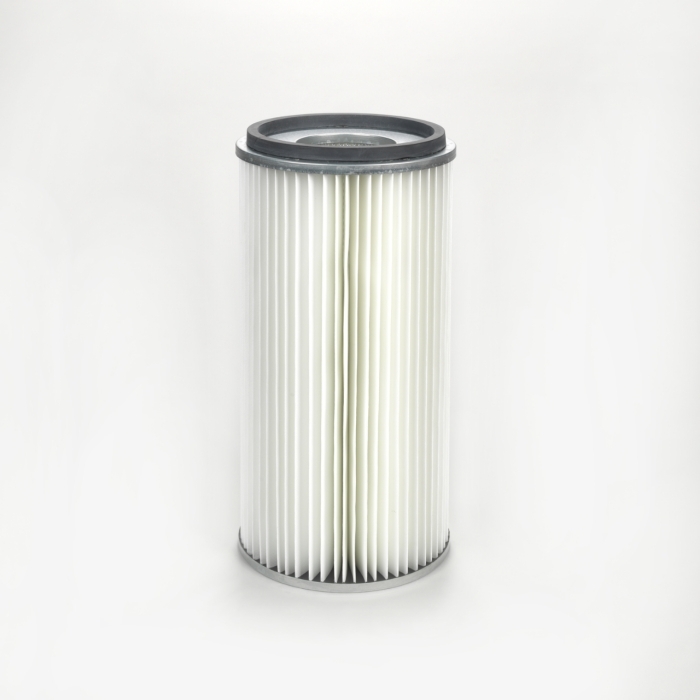

TDsmall-style Cartridge Filter in Standard Polyester, 202 mm outer diameter x 406 mm long; Special feature: Earthed with open/closed (13.5mm bolt hole) end caps for Small TD and other brands of cartridge collectors

Diameter (mm)	202
Inner Diameter (mm)	91
Length (mm)	406
Media	Standard Polyester
Media Weight (g/m²)	260
Area (m²)	2.85
Unit Family	DCE100 Series / Siloair
Top End Cap Design	Open
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	35
Number of Pleats	66
Max. Temp (°C)	65
Volume (m³)	0.020328
Weight (kg)	1.71
