2626912-000-440

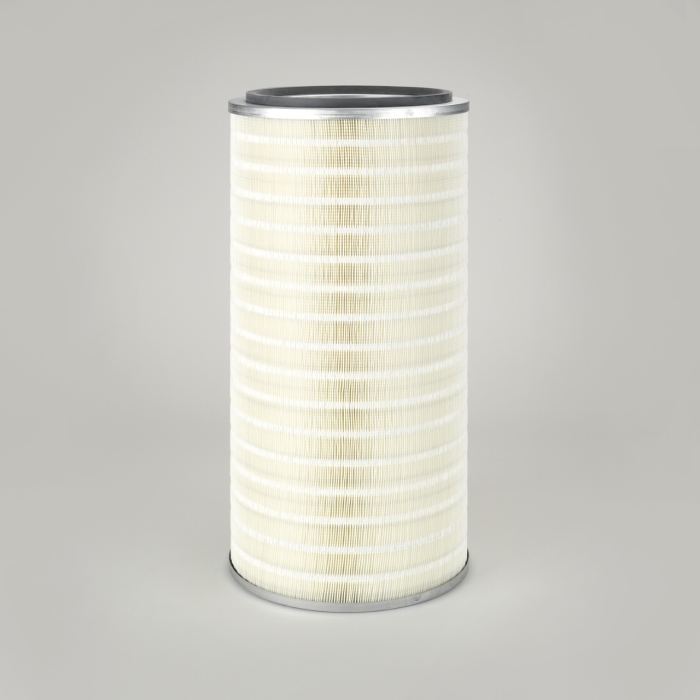

TD-style Cartridge Filter in Blended 80/20, 324 mm outer diameter x 660 mm long with open/closed (13.5mm bolt hole) end caps; Special feature: No outer liner for ECB, TD and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	Blended 80/20
Media Weight (g/m²)	250
Area (m²)	21
Unit Family	TD / ECB / DFP / PT1001
Top End Cap Design	Open
Bottom End Cap Design	Closed with hole 13 mm
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	51
Number of Pleats	172
Max. Temp (°C)	65
Volume (m³)	0.094608
Weight (kg)	6.21
