2626525

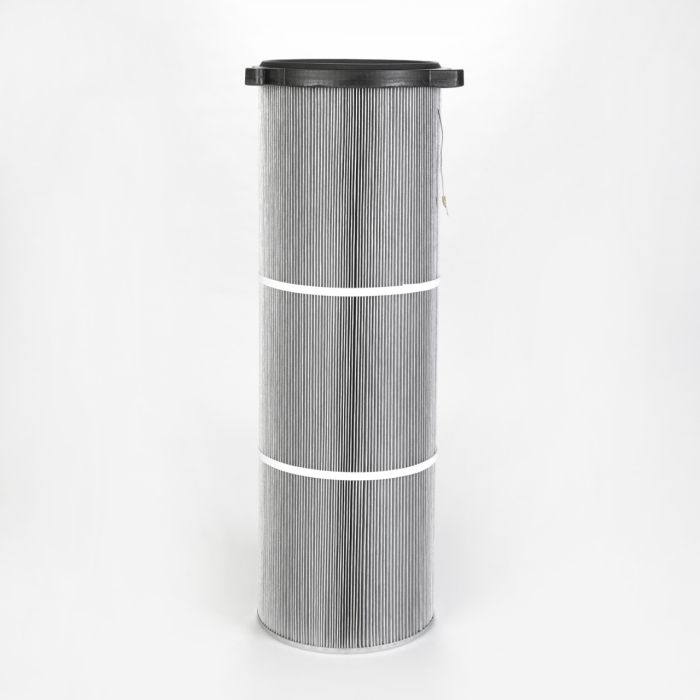

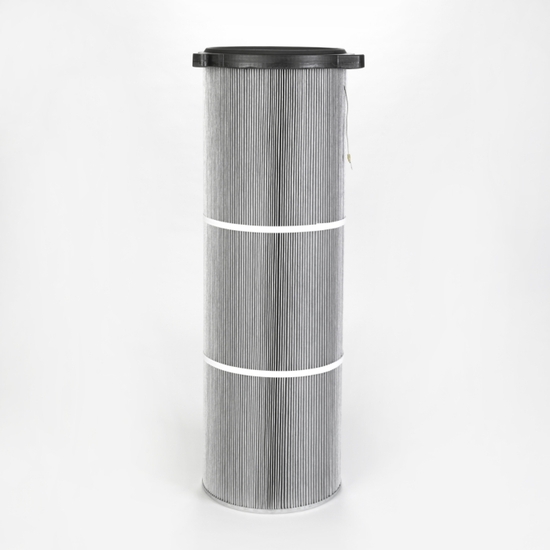

Cartridge Filter with open top end cap with 3 hooks, 160 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 125 mm outer diameter x 615 mm long including top gasket; Special features: Dirty Air Plenum installation and earthed for Quick Fix and other brands of cartridge collectors

Diameter (mm)	125
Inner Diameter (mm)	84
Length (mm)	615
Media	Polyester Anti-Static
Media Weight (g/m²)	250
Area (m²)	1.11
Unit Family	Quick Fix 3
Pitch Diameter (mm)	160
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Pleath Height (mm)	30
Number of Pleats	65
Max. Temp (°C)	60
Volume (m³)	0.03801
Weight (kg)	1.81
