2626537

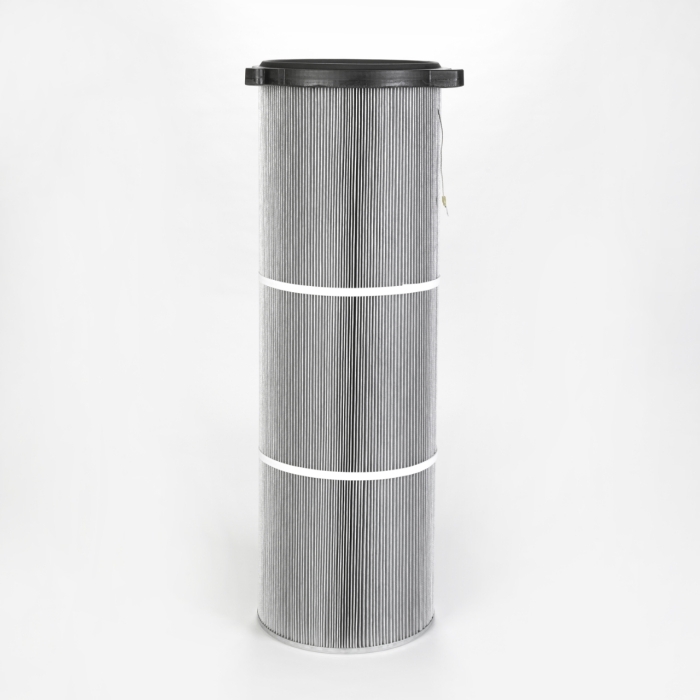

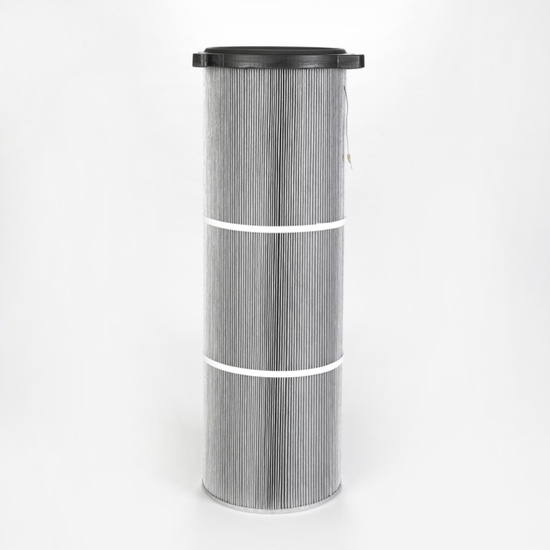

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 135 mm outer diameter x 1513 mm long including top gasket; Special features: Filter area 2.64 m², Dirty Air Plenum and Clean Air Plenum installation, earthed for Quick Fix and other brands of cartridge collectors

Diameter (mm)	135
Inner Diameter (mm)	95
Length (mm)	1513
Media	Polyester Anti-Static
Media Weight (g/m²)	260
Area (m²)	2.64
Unit Family	WAMECO
Pitch Diameter (mm)	170
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	26
Number of Pleats	36
Max. Temp (°C)	60
