2626541

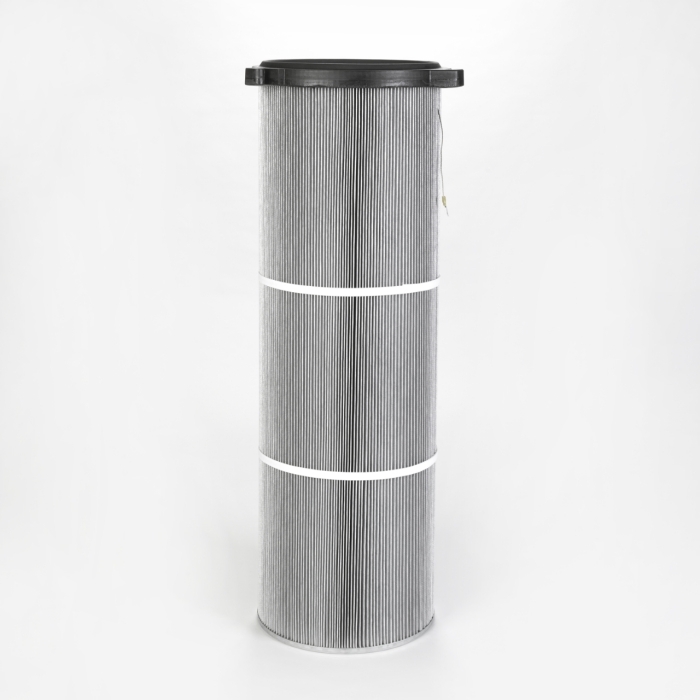

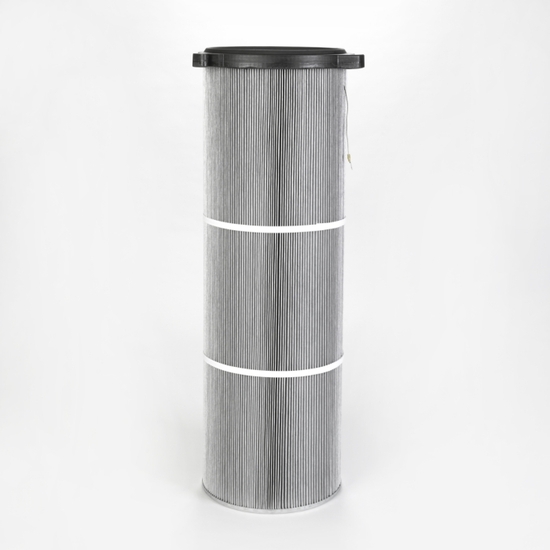

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 135 mm outer diameter x 2013 mm long including top gasket; Special features: Dirty Air Plenum installation and earthed for Quick Fix and other brands of cartridge collectors

Diameter (mm)	135
Inner Diameter (mm)	95
Length (mm)	2013
Media	Polyester Anti-Static
Media Weight (g/m²)	270
Area (m²)	6.25
Unit Family	WAMECO
Pitch Diameter (mm)	170
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Pleath Height (mm)	26
Number of Pleats	36
Max. Temp (°C)	60
Volume (m³)	0.10791
Weight (kg)	4.186
