2626528

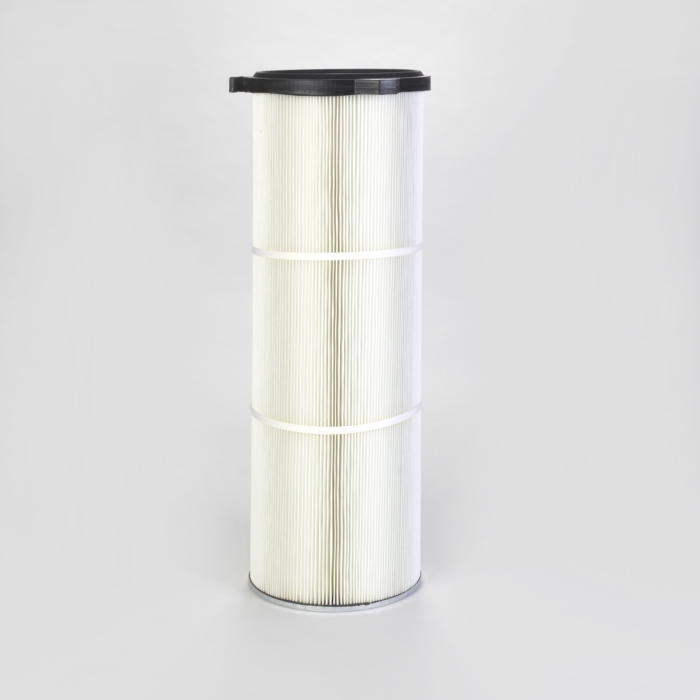

Cartridge Filter with open top end cap with 3 hooks, 160 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 125 mm outer diameter x 2015 mm long including top gasket; Special feature: Dirty Air Plenum installation for Quick Fix and other brands of cartridge collectors

Diameter (mm)	125
Inner Diameter (mm)	84
Length (mm)	2015
Media	Polyester Class L
Media Weight (g/m²)	270
Area (m²)	3.77
Unit Family	Quick Fix 3
Pitch Diameter (mm)	160
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Pleath Height (mm)	22
Number of Pleats	50
Max. Temp (°C)	60
