2626534

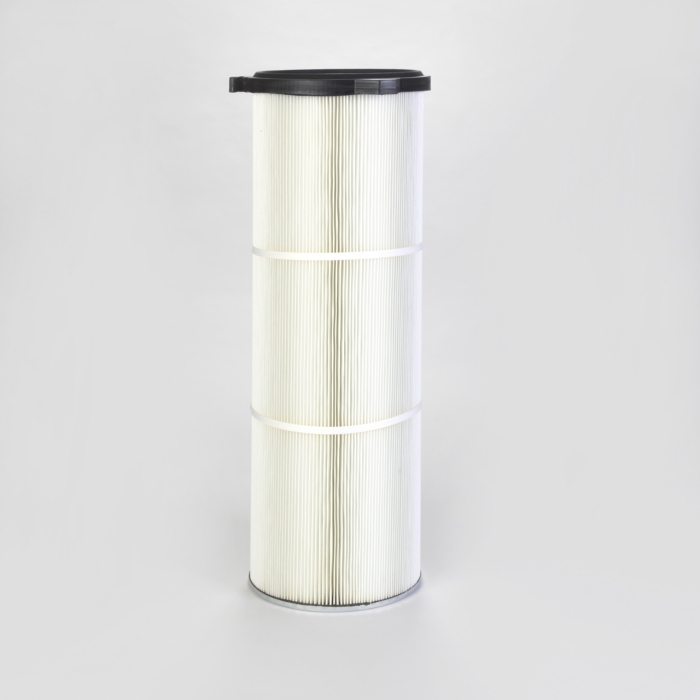

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 135 mm outer diameter x 1513 mm long including top gasket; Special features: Filter area 2.64 m² and Dirty Air Plenum and Clean Air Plenum installation for Quick Fix and other brands of cartridge collectors

Diameter (mm)	135
Inner Diameter (mm)	95
Length (mm)	1513
Media	Polyester Class L
Media Weight (g/m²)	270
Area (m²)	2.64
Unit Family	Quick Fix 3
Pitch Diameter (mm)	170
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	22
Number of Pleats	50
Max. Temp (°C)	60
