2626530

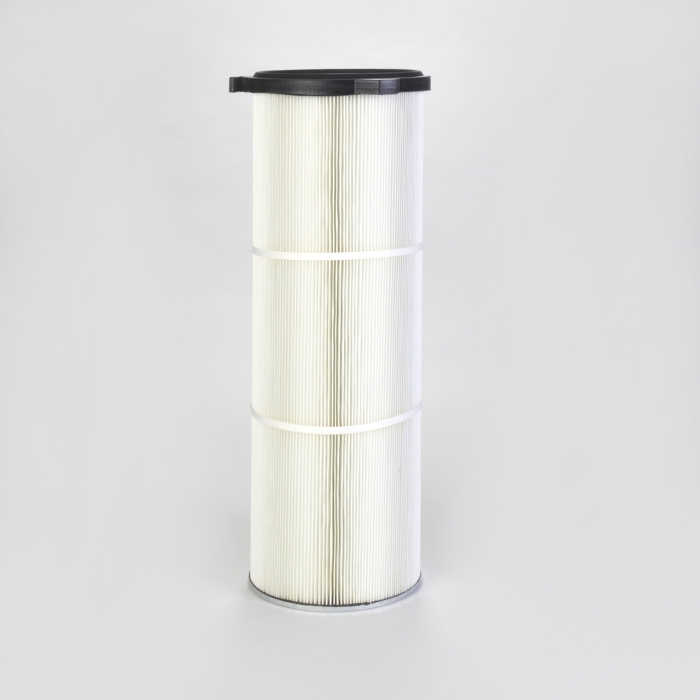

Cartridge Filter with open top end cap with 3 hooks, 170 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 135 mm outer diameter x 613 mm long including top gasket; Special feature: Dirty Air Plenum installation for Quick Fix and other brands of cartridge collectors

Diameter (mm)	135
Inner Diameter (mm)	95
Length (mm)	613
Media	Polyester Class L
Media Weight (g/m²)	270
Area (m²)	1.84
Unit Family	Quick Fix 3
Pitch Diameter (mm)	170
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Pleath Height (mm)	22
Number of Pleats	65
Max. Temp (°C)	60
