2626552

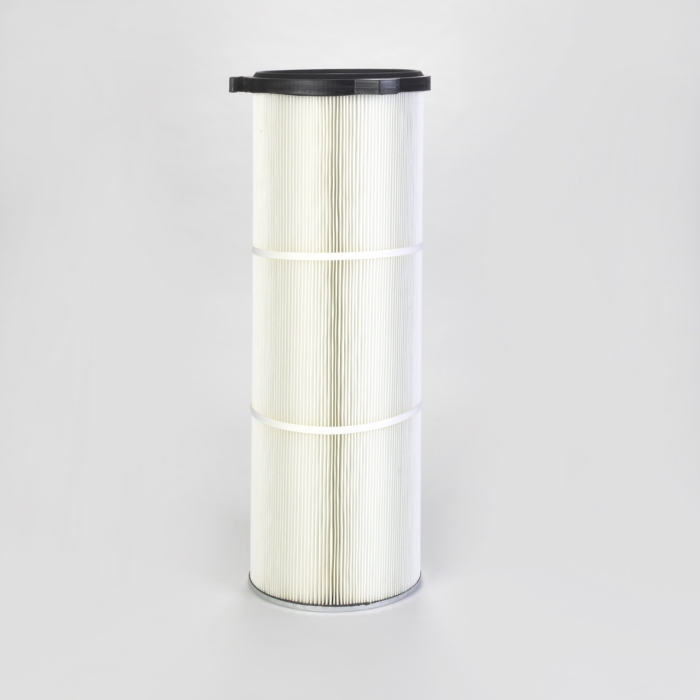

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 145 mm outer diameter x 2015mm long including top gasket; Special feature: Dirty Air Plenum installation for Quick Fix and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	2015
Media	Polyester Class L
Media Weight (g/m²)	115
Area (m²)	7.69
Unit Family	Quick Fix 3
Pitch Diameter (mm)	180
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Pleath Height (mm)	32
Number of Pleats	90
Max. Temp (°C)	60
