2626562

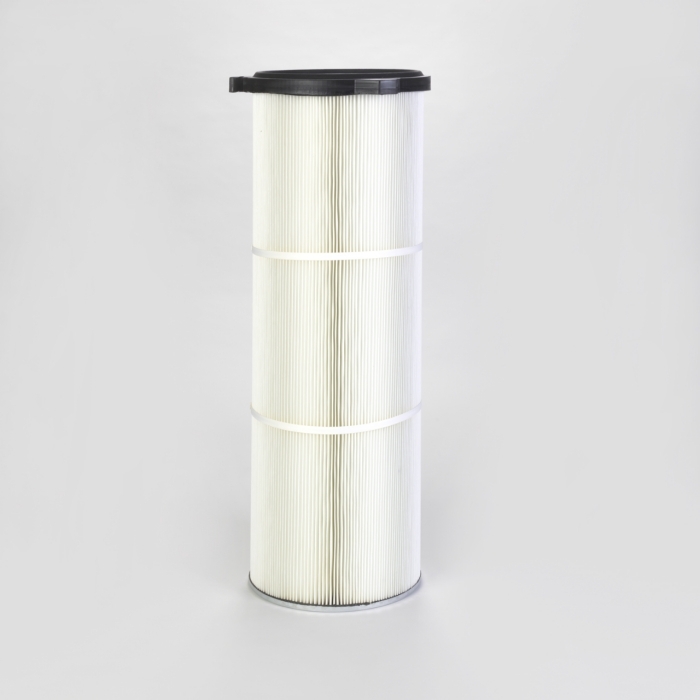

Cartridge Filter with open top end cap with 3 hooks, 267 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 218 mm outer diameter x 1515 mm long including top gasket; Special feature: Dirty Air Plenum installation for Series 218 and other brands of cartridge collectors

Diameter (mm)	218
Inner Diameter (mm)	143
Length (mm)	1515
Media	Polyester Class L
Media Weight (g/m²)	290
Area (m²)	9.6
Unit Family	Quick Fix 4
Pitch Diameter (mm)	267 (actual 265)
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Pleath Height (mm)	45
Number of Pleats	175
Max. Temp (°C)	60
Volume (m³)	0.11995
Weight (kg)	6.53
