2625796

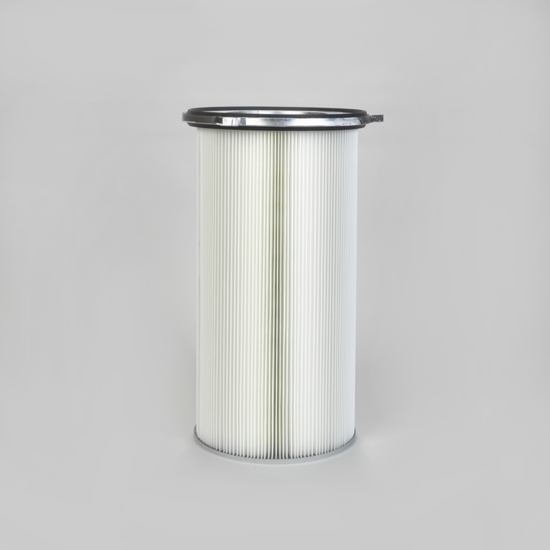

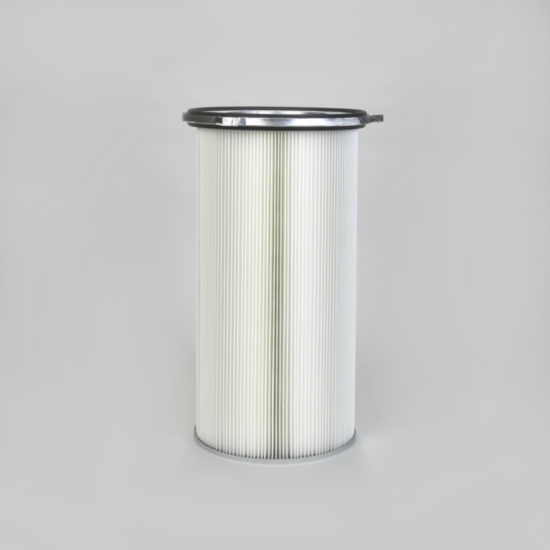

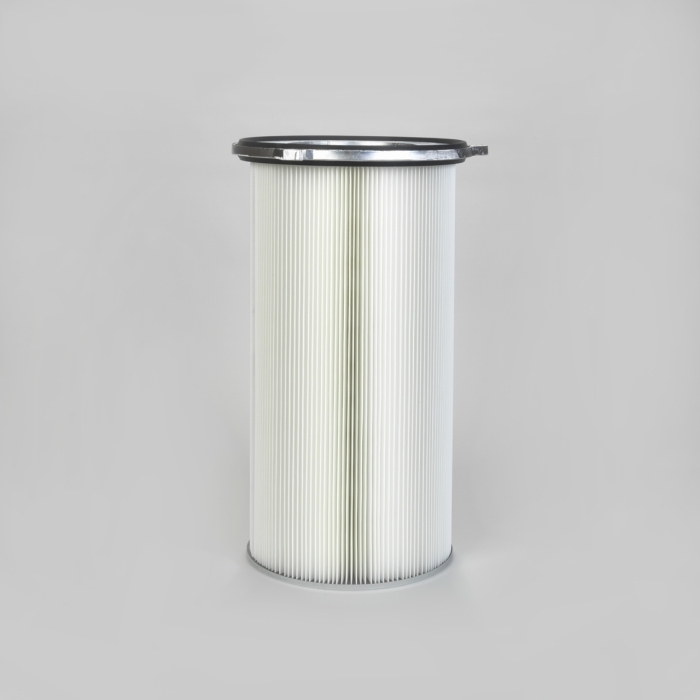

Cartridge Filter with open top end cap with 3 hooks, 267 mm pitch diameter and closed bottom end cap in Standard Polyester Spunbond, 218 mm outer diameter x 1000 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 218 and other brands of cartridge collectors

Diameter (mm)	218
Inner Diameter (mm)	143
Length (mm)	1000
Media	Standard Polyester
Media Weight (g/m²)	260
Area (m²)	4.5
Unit Family	Quick Fix 4
Pitch Diameter (mm)	267
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above and Below Top End Cap
Max. Temp (°C)	93
Volume (m³)	0.102827
Weight (kg)	4.1
