P778062-016-425

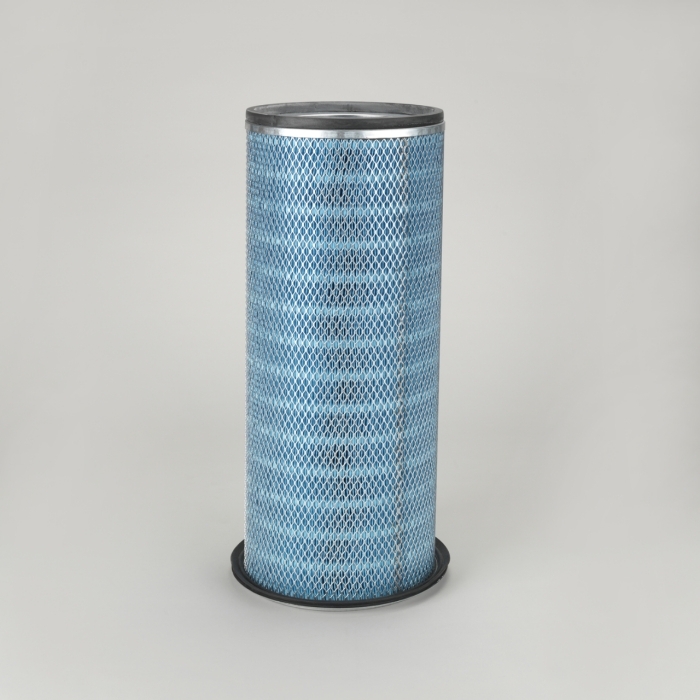

SDF-style Cartridge Filter in Ultra-Web Flame Retardant, 234 mm outer diameter x 566 mm long with open/closed end caps with built-in nut for Downsized Downflo (SDF) and other brands of cartridge collectors

Diameter (mm)	234
Inner Diameter (mm)	149
Length (mm)	566
Media	Ultra-Web Flame Retardant
Media Weight (g/m²)	114
Area (m²)	9.6
Unit Family	TD small
Top End Cap Design	Open
Bottom End Cap Design	Closed with Built-In Nut
Earthed	No
Flame Retardant	Yes
Outer Liner	Yes
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	51
Number of Pleats	100
Max. Temp (°C)	65
Volume (m³)	0.06904768512
Weight (kg)	4.10954352
