2625007-000-440

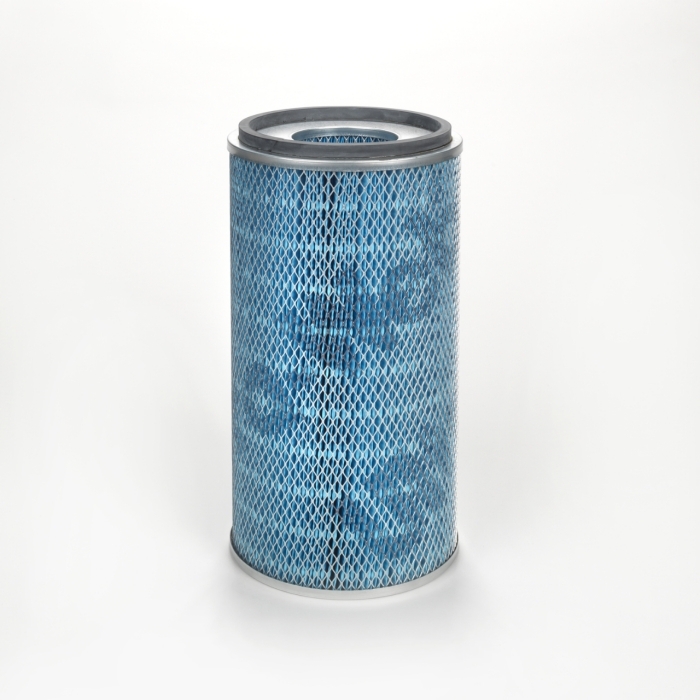

TDsmall-style Cartridge Filter in Ultra-Web, 202 mm outer diameter x 406 mm long with open/closed (13.5mm bolt hole) end caps for Small TD and other brands of cartridge collectors

Diameter (mm)	202
Inner Diameter (mm)	91
Length (mm)	406
Media	Ultra-Web
Media Weight (g/m²)	114
Area (m²)	5.5
Unit Family	SDF
Top End Cap Design	Open
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	No
Flame Retardant	No
Outer Liner	Yes
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	38
Number of Pleats	228
Max. Temp (°C)	65
Volume (m³)	0.01896
Weight (kg)	1.71
