2625180-000-440

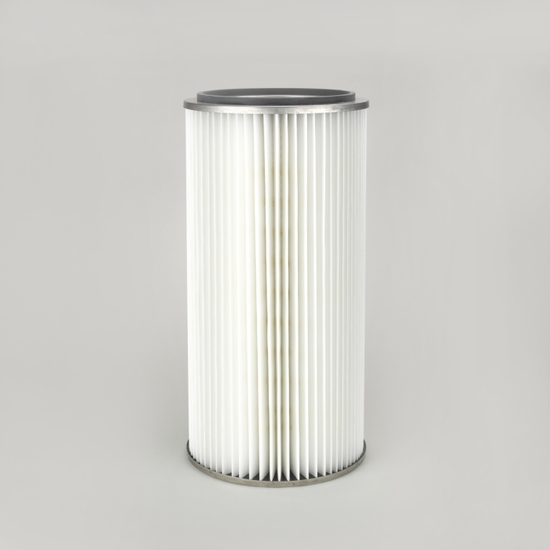

TD-style Cartridge Filter in Ultra-Web Spunbond, 324 mm outer diameter x 660 mm long with open/closed (13.5mm bolt hole) end caps for ECB, TD and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	Ultra-Web Spunbond
Media Weight (g/m²)	108
Area (m²)	10.2
Unit Family	DFT / DF+
Top End Cap Design	Open
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	51
Number of Pleats	364
Max. Temp (°C)	93
Volume (m³)	0.0959
Weight (kg)	6.313
