P034584-016-436

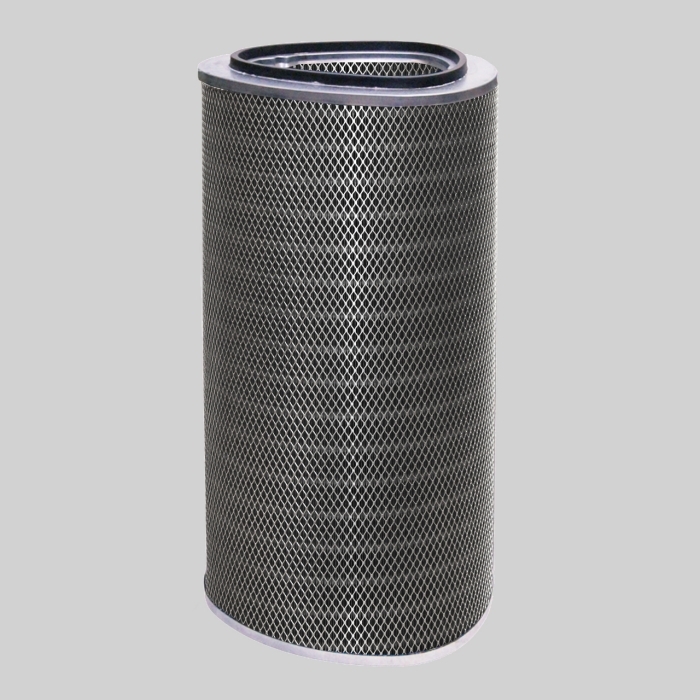

Ultra-Web Conductive Flame Retardant Triagonal Cartridge Filter, (349 mm X 349 mm) outer diameter X 660 mm long (13.74-inch X 13.74-inch) outer diameter X 26.00-inches long), Open/Open End caps for Downflo Evolution and other brands of cartridge collectors. 51 (2.00-inch) Pleat Height

Diameter (mm)	349
Diameter II (mm)	349
Inner Diameter (mm)	237.4
Inner Diameter II (mm)	237.4
Length (mm)	660
Media	Ultra-Web Anti-Static Flame Retardant
Media Weight (g/m²)	115
Area (m²)	23.6
Unit Family	DFE
Top End Cap Design	Open
Bottom End Cap Design	Open
Earthed	No
Flame Retardant	Yes
Outer Liner	Yes
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	50
Number of Pleats	364
Max. Temp (°C)	82
Volume (m³)	0.11893056
Weight (kg)	6.350288
