P034302-016-436

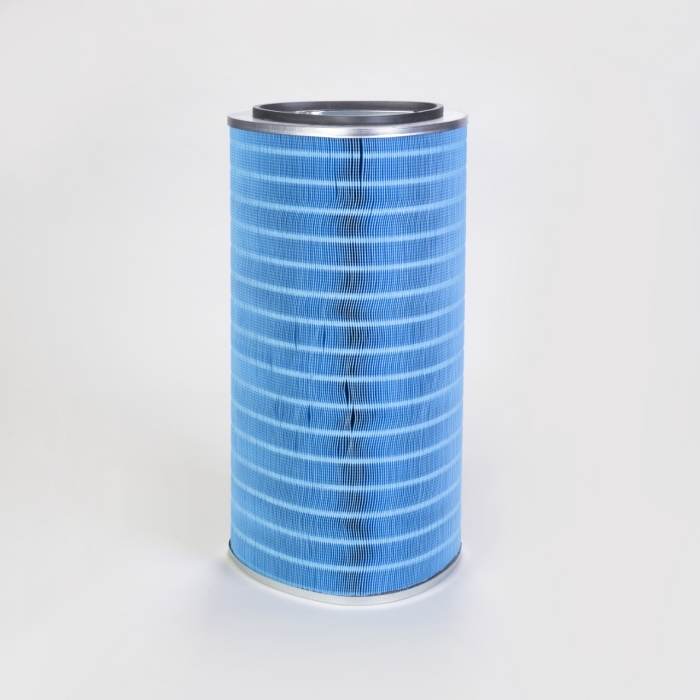

Ultra-Web Triagonal Cartridge Filter, (349 mm x 349 mm) outer diameter x 660 mm long (13.74-inch x 13.74-inch) outer diameter x 26.00-inches long), No Liner, Open/Open End caps for Downflo Evolution and other brands of cartridge collectors. 51 mm (2.00-inch) Pleat Height

Diameter (mm)	349
Diameter II (mm)	349
Inner Diameter (mm)	237.4
Inner Diameter II (mm)	237.4
Length (mm)	660
Media	Ultra-Web
Media Weight (g/m²)	115
Area (m²)	23.6
Unit Family	Quick Fix 3
Top End Cap Design	Open
Bottom End Cap Design	Open
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	45
Number of Pleats	360
Max. Temp (°C)	82
Volume (m³)	0.120629568
Weight (kg)	6.46822192
